• Product Description
    Company Info.
    Model:
    DN
    Processing customization:
    Yes
    Types:
    Refrigeration equipment for air conditioning
    Use:
    Refrigerator tube cleaning
    Overall dimension:
    DN100-DN900
    Weight:
    6000 kg
    Scope of application:
    cooler

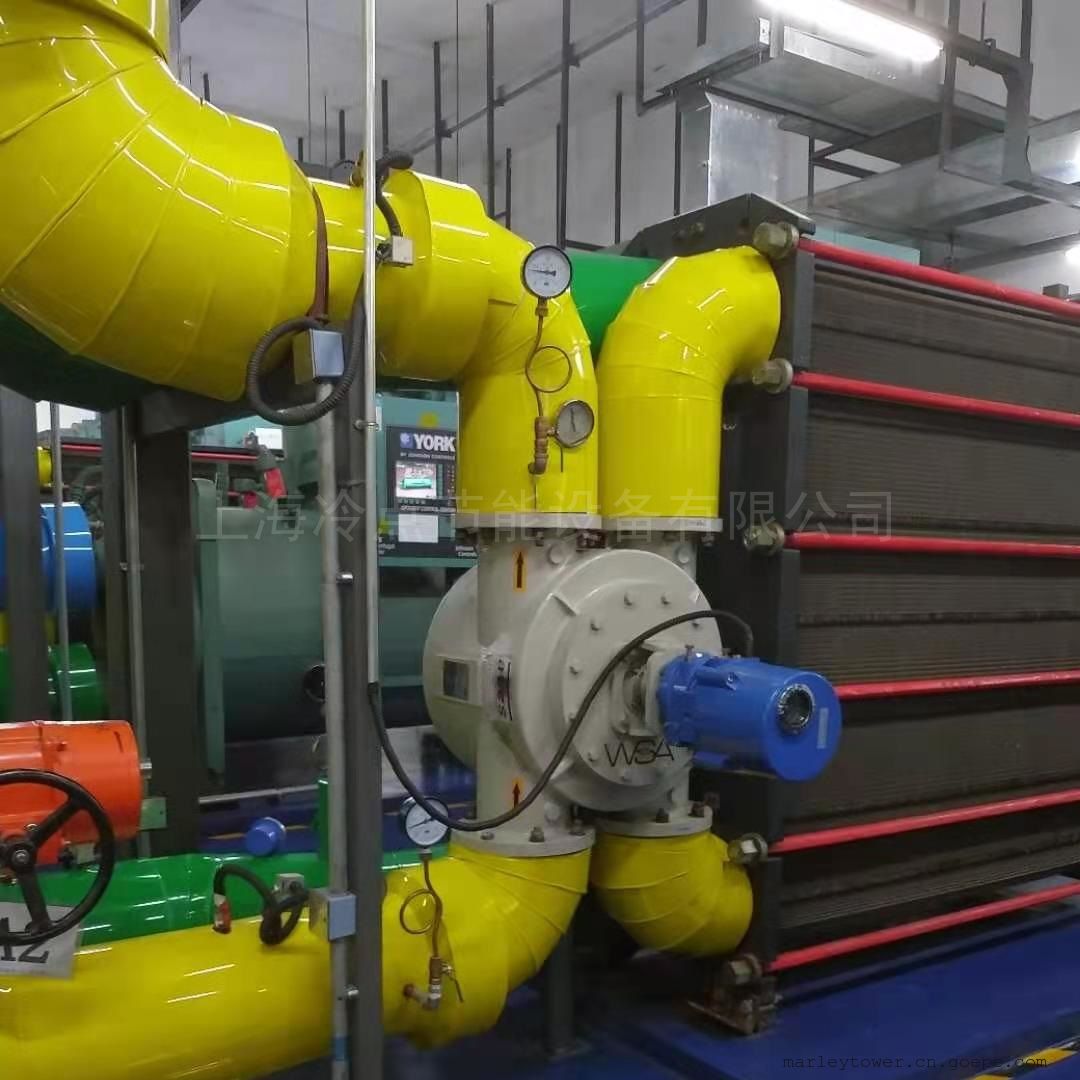

    CondenserWSA condenser pipe self-cleaning device DN, designed to clean each tube bundle 3-6 times a day, so that the unit free of fouling effects, its standard equipment components include cleaning brushes, brush catch basket, water flow reversing valve, electric actuator, control electric box.

    Cleaning brush: nylon bristles and stainless steel winding wire, brush can withstand temperature of 120 degrees Celsius, can be applied to urban water, groundwater, surface water and salt sea water without corrosion and rust. As a wear part, the service life is 6 years (generally recommended to use 3 years for detailed inspection whether it needs to be replaced, special use environment can be made according to the use of special materials)American WSA condenser pipe self-cleaning device DN

    Capture basket: PE, acid and alkali resistance, organic solvent resistance, good electrical insulation, can be applied to-20 to 70 degrees Celsius water temperature environment.

    Water flow reversing: made of standard pressure capacity device, applicable pipe diameter range from 100- 600mm, can bear standard water pressure 1.6Mpa, nominal flow rate from 50 cubic meters/hour-300 cubic meters/hour, carbon steel or stainless steel can be selected according to actual operation conditions and water quality.

    Electric actuator: Heavy duty industrial design actuator with microswitch that records the position of the running trajectory and provides accurate power for commutation in a short time.

    Control box: editable cleaning cycle selection from 15 minutes to 24 hours. IP54 electric box also includes position indication, alarm indication, cycle counter, cable connector, etc. The operation of the cleaning device is completely independent and does not cause any interference to the refrigeration system.

    Name(chinese)
    Name(English)
    Shanghai Lengdian Energy Saving Equipment Co., Ltd.
    China credit code
    Identity Verification
    Registered Capital
    10,000 CNY
    Operating term
    2020-10-12 ~ 2040-10-11
    Product Category
    cooling towerWSA tube brushplate replacement backwashself cleaning filterAPV board replacementrubber ball cleaning
    Company Registered Address:
    No. 655 Jiujing Road, Songjiang District, Shanghai City
    Address
    Songjiang District, Shanghai, China
    Nearby port
    Shanghai
    Shanghai Cold Spot Energy Saving Equipment Co., Ltd.(hereinafter referred to as Cold Spot Energy Saving) is a company engaged in the sales, installation, maintenance and installation of central heating and cooling equipment, energy-saving equipment. Focusing on the refrigeration industry for more than 10 years, its products are widely used in commercial buildings and factory construction fields. Now it has become an eclectic company integrating refrigeration equipment, energy-saving equipment, design, sales and installation. Business scope: Sales and installation of refrigeration equipment: Marley Marley cooling tower, Mcville air conditioning unit, Trane air conditioning unit, APV board replacement, PEP sand filter, WSA pipe brush online cleaning, pipeline self-cleaning equipment, water treatment equipment and pharmaceuticals and other products. Design and construction of energy-saving equipment: design and installation of air conditioning, purification, refrigeration, etc. It has successively provided good refrigeration and energy-saving design, installation and after-sales services for domestic medium and large office buildings, pharmaceutical electronics, chemicals, supermarket and other enterprises; installed and maintained central air conditioners, energy conservation and other projects for hotels, factories, office buildings, etc.; In addition, it also provides design, equipment and installation for various electronic factories, hospitals, pharmaceuticals, purification and air conditioning workshops, etc. Environmental protection concept: Paying attention to environmental protection and energy conservation, attaching importance to comprehensive utilization of energy, using clean energy and being customer-centered are the constant pursuit of cold spot energy conservation products. Cold spots rely on quality to survive, and we take every detail into consideration and provide comprehensive solutions.
